BF

Feature     |      Parameter     |   Case



BF Series

          Foldable, Portable, Space Saving

● Foldable Modules,

● Save Space and Transportation Cost

● Slim and Lightweight

● Support Hanging, Stacking, and Attaching

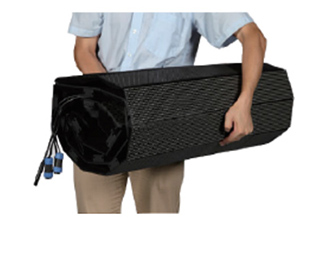

Variable Foldable Module

● 180 or 360 degree foldable

● Storage, transportation cost, space saving





Slim, Light Weight and Portable

● 8.5mm-15mm thickness

● <12kg per m2

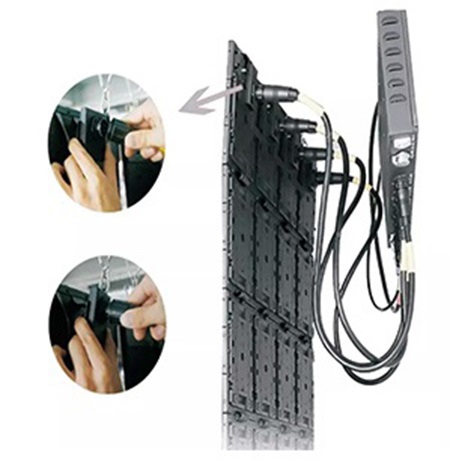

● Extended Data and Power Box, integrated unit.

● Max power cable distance 7m-10m











Easy and Fast Installation

● Available for both horizontal and vertical assembling

● Flat and curve options for any customized installation

● Easy connection design allows the fast set up and tear

   down, save 80% labor cost











BF-3.9

BF-5.2

BF-6

BF-7

Physical Pitch

3.91mm

5.2mm

6mm

7.8mm

Pixel Configuration

SMD 1010

SMD 2020

SMD 3528

SMD 3528 / SMD 3535

Pixel Density

65,536 pixels/m²

36,982 pixels/m²

27,556 pixels/m²

16,384 pixels/m²

United Size (mm)

250 × 250

250 × 250

192 × 192

250 × 250

Physical Resolution of Unit (W× H)

64 × 64

48 × 48

32 × 32

32 × 32

Weight(kg/m²)

<10

<9

<10

<9

Gray Scale

16bit

16bit

16bit

16bit

Colours

281trillion

281trillion

281trillion

281trillion

Contrast Ratio

2,000 : 1 / 4,000 : 1

2,000 : 1 / 4,000 : 1

2,000 : 1 / 4,000 : 1

2,000 : 1 / 4,000 : 1

Average Power Consumtion

150 / 310 W/m²

90 / 200 W/m²

150 / 310 W/m²

90 / 200 W/m²

Max Power Consumption

375 / 775 W/m²

225 / 500 W/m²

375 / 775 W/m²

225 / 500 W/m²

Operating Temp/Humidity

-10℃- 60℃ / 10%-60%

-10℃- 60℃ / 10%-60%

-10℃- 60℃ / 10%-60%

-10℃-60℃ / 10%-60%

Storage Temp/Humidity

-30℃- 60℃ / 10%-60%

-30℃- 60℃ / 10%-60%

-30℃-60℃ / 10%-60%

-30℃- 60℃ / 10%-60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

1,200 nits

1,200 nits

2,000 / 4,000 nits

1,500 / 6,000 nits

Foldable Angle

360°

360°

360°

360°

Max Length of Control Box

6m

8m

6m

8m

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

100,000 Hrs

Servicing

Front

Front

Front

Front

IP Rating (Front/Rear)

IP 43 / IP 54

IP 43 / IP 54

IP 43 / IP 54

IP 43 / IP 54

Scan Method

1/16 Scan

1/12 Scan

1/16 Scan

1/16 Scan





BF-10



BF-12



Physical Pitch

10mm



12mm



Pixel Configuration

SMD 3528



SMD 3528



Pixel Density

10,000 pixels/m²



6,889 pixels/m²



United Size (mm)

160 × 160



192 × 192



Physical Resolution of Unit (W× H)

16 × 16



16 × 16



Weight(kg/m²)

<9



<9



Gray Scale

16bit



16bit



Colours

281trillion



281trillion



Contrast Ratio

2,000 : 1 / 4,000 : 1



2,000 : 1 / 4,000 : 1



Average Power Consumtion

110 W/m²



75 W/m²



Max Power Consumption

275 W/m²



187 W/m²



Operating Temp/Humidity

-10℃- 60℃ / 10%-60%



-10℃- 60℃ / 10%-60%



Storage Temp/Humidity

-30℃- 60℃ / 10%-60%



-30℃-60℃ / 10%-60%



Refresh Rate

>1,920 Hz



>1,920 Hz



Brightness

1,500 nits



1,500 nits



Foldable Angle

360°



360°



Max Length of Control Box

4m



12m



Expected Lifetime

100,000 Hrs



100,000 Hrs



Servicing

Front



Front



IP Rating (Front/Rear)

IP 43 / IP 54



IP 43 / IP 54



Scan Method

1/16 Scan



1/16 Scan
