BR Series

Feature     |      Parameter     |   Case



BR Series

          Round Shape LED Sign,

          Digital Round Logo Sign

● Outdoor Rated

● High Bright and IP 65

● Front Access, Double Sided

● Plug & Play Solution











Outdoor Rated

● Water proof and high bright

● For all weather conditions

● PC material mask with highly scrach-resistant

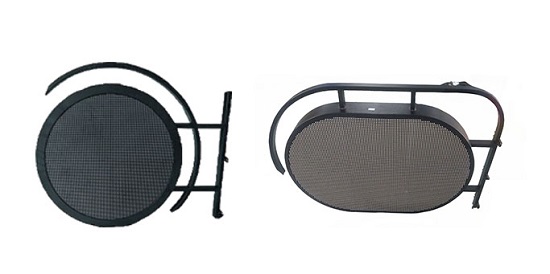

Round & Oval Options

● Round and Oval shape options

● Both double sided













Easy to Install & Maintain

● Smart bracket design

● Front access

● Less than 20 kg









Plug & Play Solutions

● WIFI, USB, Cloud platform

● Plug & Play solution











BR(Round)-4.68

BR(Oval)-8

Physical Pitch

4.68mm

8mm

Pixel Configuration

SMD 3-in-1

SMD 3-in-1

Pixel Density

45,511 pixels/m²

15,625 pixels/m²

Module Dimensions (W × H) (mm)

300 x 300

320 x 320

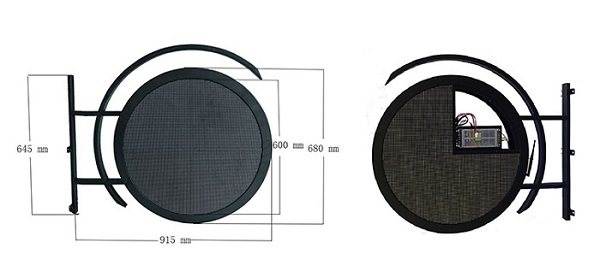

Inner Diameter (mm)

600

960 x 640

NO.of Modules Per Panel (W × H)

2 x 2

2 x 2

Physical Resolution of Module (W × H)

64 x 64

40 x 40

Physical Resolution of Panel (W × H)

128 x 128

120 x 80

Panel Material

Steel

Steel

Weight

16 kg/unit

19 kg/unit

Gray Scale

16 bit

16 bit

Colours

281 trillion

281 trillion

Contrast Ratio

2,000 : 1

2,000 : 1

Power Consumption

around 400 W/unit

around 400 W/unit

Driving Method

1/8 Dynamic Scan

1/8 Dynamic Scan

Operating Temp/Humidity

-20°-60°/10%-95%

-20°-60°/10%-95%

Brightness

>4,500 nits

>4,500 nits

Brightness Adjustment

Manual Adjustment

Manual Adjustment

Control Method

WIFI/USB/Cloud Platform

WIFI/USB/Cloud Platform

Refresh Rate

>1,920 Hz

>1,920 Hz

Working Voltage

Ac 240/100±10% 50 Hz/60 Hz

Ac 240/100±10% 50 Hz/60 Hz

Viewing Angle

120°(V)120°(H)

120°(V)120°(H)

Expected Lifetime

100,000 Hrs

100,000 Hrs

Servicing

Front

Front

IP Rating

IP65

IP65
