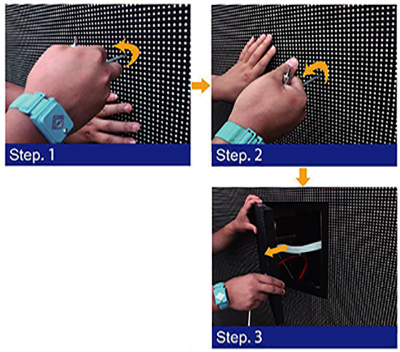

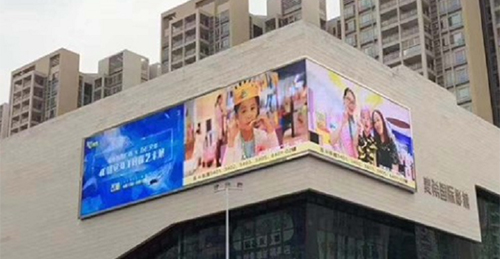

	BOF-Fine Pitch Series ● Fine Pitch DOOH Display ● IP68 Rated Module ● Mechanical Front Access ● Easy 90° Corner Sha

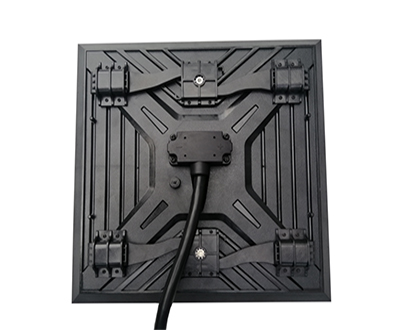

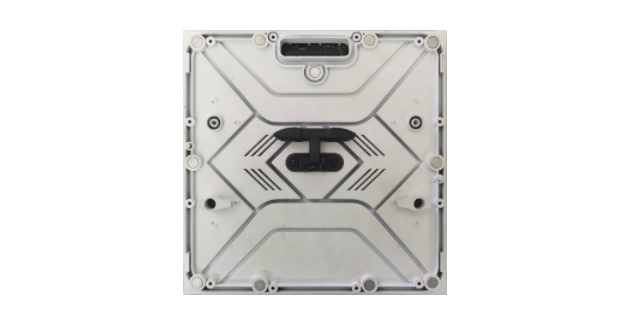

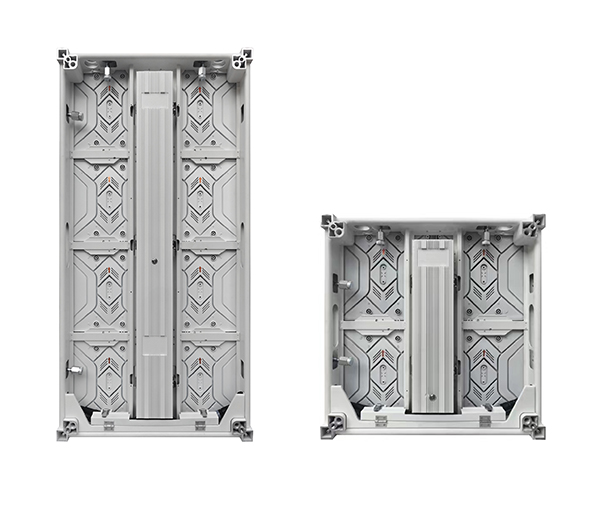

Multifunctional Module Buckle ● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment	Fast Installation and Easy Maintenance ● Extruded aluminum cabinet, only 25KG/㎡ ● Easy for 90° Corner Shape ● Mechanical front access, suitable for wall mount

Outdoor Rated ● IP68 module and IP65 cabinet ● Adjustable brightness for outdoor day and night ● Strong and high bright LED Intelligent Software System ● Intelligent control and player system by cloud technology ● Time management and real time monitoring

	BOF-Fine Pitch-3.9	BOF-Fine Pitch -4.8
Physical Pitch	3.9mm	4.8mm
Pixel Configuration	SMD	SMD
Pixel Density	65,536 pixels/m²	43,264 pixels/m²
Module Dimensions (W× H) (mm)	250 x 250	250 x 250
Panel Dimensions (mm)	500 x 1000	500 x 1000
NO .of Modules Per Panel (W × H)	2 x 4	2 x 4
Physical Resolution of Module ( W× H)	64 x 64	52 x 52
Physical Resolution of Panel ( W× H)	128 x 256	104 x 208
Single Cabinet Weight	25 kg	25 kg
Panel Material	Extruded Aluminum	Extruded Aluminum
Gray Scale	16 bit	16 bit
Colours	281 trillion	281 trillion
Contrast Ratio	2000:1 / 4000:1	2000:1 / 4000:1
Average Power Consumption	360W/m²	360W/m²
Max Power Consumption	900W/m²	900W/m²
Refresh Rate	>3,840 Hz	>3840 Hz
Brightness	≥5,000 nits	≥5000 nits
Horizontal Viewing Angle	160°	160°
Vertical Viewing angle	140°	140°
Expected Lifetime	100,000 Hrs	100,000 Hrs
Servicing	Front	Front
IP Rating (Front/Rear)	IP65	IP65
Operating Temperature	-20~50℃/10%~90%	-20~50℃/10%~90%
Storage Temperature	-20~50℃/10%~90%	-20~50℃/10%~90%

BOF-Fine Pitch
