BOF Series,Shenzhen Bako Vision Technology Co., LTD

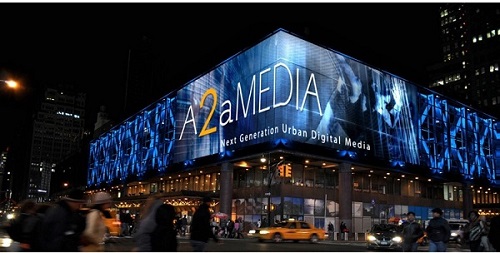

	BOF-F Series Front Service ● Energy-saving Ready ● Conventional DOOH Display ● Mechanical Front Access ● Concave, Convex with Curvilinear Angles

Multifunctional Module Buckle ● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment	Fast Installation and Easy Maintenance ● Fast lock system design guarantees a quick and easy installation ● Mechanical front access

Outdoor Rated ● IP65 rating ● Brightness adjustable for day and night ● Durable LED for 7/24 work mode Energy-Saving Technology ● Cutting dege"cold display" technology ● 60% power lower than normal ● 50% temperature less than normal

	BOF-F-4	BOF-F-5	BOF-F-6	BOF-F-8	BOF-F-10
Physical Pitch	4 mm	5.95 mm	6.67 mm	8 mm	8 mm
Pixel Configuration	SMD 2727	SMD 2727	SMD 2727	SMD 3535	SMD 3535
Pixel Density	43,264 pixels/m²	28,246 pixels/m²	22,500 pixels/m²	15,625 pixels/m²	10,000 pixels/m²
Module Dimensions (W × H) (mm)	250 × 250	250 × 250	320 × 320	320 × 160	320 × 160

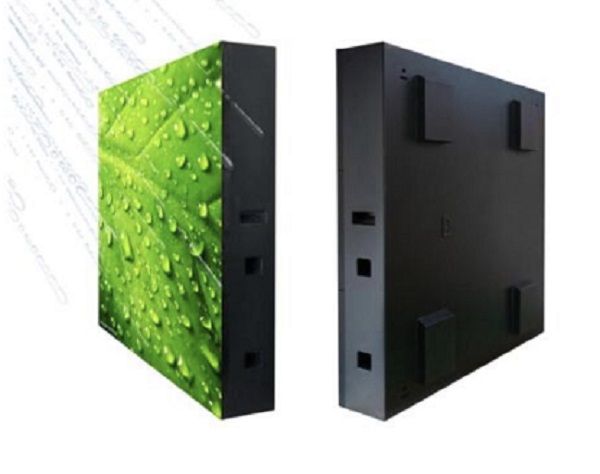

Panel Dimensions (mm)	1000 × 1000 × 150	500 × 1000 × 150	1280 × 960 × 150	960 × 960 × 150	1280 × 960 × 150
NO .of Modules Per Panel (W × H)	4 × 4	2 × 4	4 × 3	3 × 6	4 × 6
Physical Resolution of Module (W × H)	52 × 52	52 × 52	48 × 48	32 × 32	32 × 32
Physical Resolution of Panel (W × H)	208 × 208	84 × 168	192 × 144	120 × 120	96 × 96
Panel Material	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum
Weight(m²)	65/45	65/45	65/45	65/45	65/45
Processing	16 bit	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1
Average Power Consumption	360 W/m²	36 W/m²	360 W/m²	360 W/m²	360 W/m²
Max Power Consumption	900 W/ m²	900 W/ m²	900 W/ m²	900 W/ m²	900 W/ m²
Average Power After Energy Saving	-	-	90 W/ m²	90 W/ m²	90 W/ m²
Max Power After Energy Saving	-	-	230 W/ m²	230 W/ m²	230 W/ m²
Refresh Rate	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz
Brightness	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits
Vertical Viewing Angle	160°	160°	160°	160°	160°
Horizontal Viewing angle	140°	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs

Servicing	Rear	Rear	Rear	Rear	Rear
IP Rating	IP 65	IP 65	IP 65	IP 65	IP 65
Operating Temp/Humidity	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%
Storage Temp/Humidity	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%
Scan Method	1/13 Scan	1/7 Scan	1/10 Scan	1/4 Scan	1/2 Scan

BOF-F

BOF-F Series Front Service

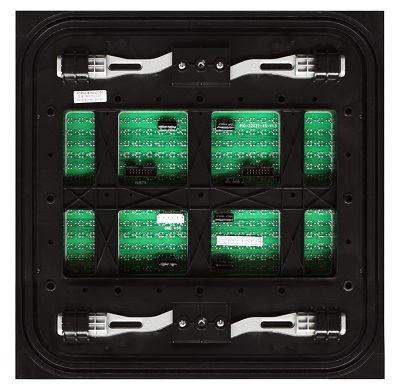

Multifunctional Module Buckle

● Special multifunctional module buckle designed for

adjusting gaps between module and cabinet to

ensure the smoothness and alignment

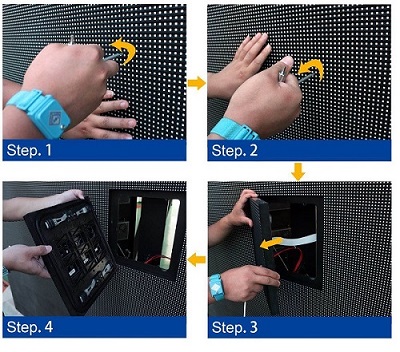

Fast Installation and Easy Maintenance

● Fast lock system design guarantees a quick and easy installation

● Mechanical front access

Outdoor Rated

BOF-F

BOF-F Series Front Service

Multifunctional Module Buckle ● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment

Fast Installation and Easy Maintenance ● Fast lock system design guarantees a quick and easy installation ● Mechanical front access

Outdoor Rated

Multifunctional Module Buckle

● Special multifunctional module buckle designed for

adjusting gaps between module and cabinet to

ensure the smoothness and alignment

Fast Installation and Easy Maintenance

● Fast lock system design guarantees a quick and easy installation

● Mechanical front access
