BOF Series,Shenzhen Bako Vision Technology Co., LTD

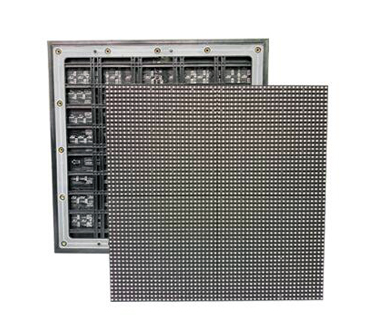

	BOF-B Series Back Service ● Energy-saving Ready ● Conventional Back Service ● Stable and Durable ● Concave, Convex with Curvilinear Angles

Durable and Qualified Components ● The most durable and qualified components are selected ● Deliberate designs on waterproof and ventilation system	Fast Installation and Easy Maintenance ● Fast lock system design guarantees a quick and easy installation ● Conventional rear access

Outdoor Rated ● IP65 rating ● Brightness adjustable for day and night ● Selected LED for 7/24 work mode Energy-Saving Technology ● Cutting dege"cold display" technology ● 60% power lower than normal ● 50% temperature less than normal

	BOF-B-3	BOF-B-4	BOF-B-5	BOF-B-6	BOF-B-8
Physical Pitch	3.2 mm	4 mm	5 mm	6.67 mm	8 mm
Pixel Configuration	SMD 1921	SMD 1818	SMD 2727	SMD 2727	SMD 3535
Pixel Density	97,656 pixels/m²	62,500 pixels/m²	40,000 pixels/m²	22,376 pixels/m²	15,625 pixels/m²
Module Dimensions (W × H) (mm)	192 × 192	320 × 160	320 × 160	320 × 160	320 × 160
Panel Dimensions (mm)	960 × 960 × 150	960 × 960 × 150	960 × 960 × 150	960 × 960 × 150	960 × 960 × 150
NO .of Modules Per Panel (W × H)	5 × 5	3 × 6	3 × 6	3 × 6	3 × 6
Physical Resolution of Module (W × H)	60 × 60	80 × 40	64 × 32	48 × 24	40 × 20
Physical Resolution of Panel (W × H)	300 × 300	240 × 240	192 × 192	144 × 144	120 × 120
Panel Material	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum
Weight(m²)	65/45	65/45	65/45	65/45	65/45
Processing	16 bit	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1
Average Power Consumption	360 W/m²	360 W/m²	36 W/m²	360 W/m²	360 W/m²
Max Power Consumption	900 W/ m²	900 W/ m²	900 W/ m²	900 W/ m²	900 W/ m²
Average Power After Energy Saving	-	-	-	90 W/ m²	90 W/ m²
Max Power After Energy Saving	-	-	-	230 W/ m²	230 W/ m²
Brightness	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits
Refresh Rate	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz
Horizontal Viewing Angle	160°	160°	160°	160°	160°
Vertical Viewing angle	140°	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs

BOF-B
