UHD

Feature     |      Parameter     |   Case

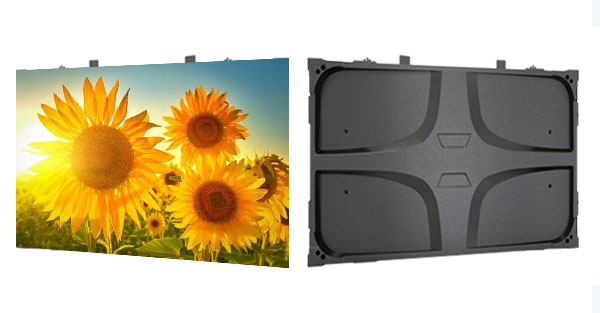

UHD Series

 Ultra Fine Pitch, Big Screen

● For 16:9 and 4:3 Aspect Ratio

● Fully Front Access for Wall Mounting

● High Color Fidelity and High Contrast Ratio

● Cable-less Connection

● Slim and Lightweight





16:9 and 4:3 Format Options

● Each cabinet is 600mmx337.5mm

● 16:9 or 4:3 free options

● Available for any video formats

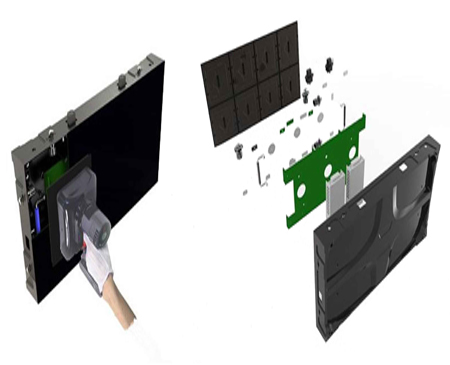

Fast Installation and Easy Maintenance

● Slim and lightweight, easy to install

● Cable-less between modules

● Fully front access

● Wall mounting available

Superior Electrical Features

● NR20 noise free

● Flat cable free between module and cabinet to avoid

  signal missing



Unsurpassed Color Uniformity

● Unique color calibration process

● Tight bin selection for LED wavelength

● Deep black levels, contrast ratio 4000:1














UHD-0.937

UHD-1.2

UHD-1.5

UHD-1.8

UHD-2.3

Physical Pitch

0.937mm

1.25mm

1.56mm

1.87mm

2.34mm

Pixel Configuration

SMD 0606

SMD 1010

SMD 1010

SMD 1010

SMD2121

Pixel Density

11,138,489pixels/m²

648,000 pixels/m²

410,881 pixels/m²

286,225 pixels/m²

182,329 pixels/m²

Module Dimensions (W × H) (mm)

150 × 168.75

150 × 168.75

150 × 168.75

150 × 168.75

150 × 168.75

Panel Dimensions (mm)

600 × 337.5

600 × 337.5

600 × 337.5

600 × 337.5

600 × 337.5

NO.of Modules Per Panel (W × H)

4 × 2

4 × 2

4 × 2

4 × 2

4 × 2

Physical Resolution of Module (W × H)

160 × 180

120 × 135

96 × 108

80 × 90

64 × 72

Physical Resolution of Panel (W × H)

640 × 360

480 × 270

384 × 216

320 × 180

256 × 144

Panel Material

Die-casting

Die-casting

Die-casting

Die-casting

Die-casting

Single Cabinet Weight

6 kg/panel

6 kg/panel

6 kg/panel

6 kg/panel

6 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 ：1

4,000 ：1

4,000 ：1

4,000 ：1

4,000 ：1

Average Power Consumption

≤300 W/m²

≤300 W/m²

≤300 W/m²

≤300 W/m²

≤300 W/m²

Max Power Consumption

≤600 W/m²

≤600 W/m²

≤600 W/m²

≤600 W/m²

≤600 W/m²

Brightness

600~800 nits

600~800 nits

600~800 nits

600~800 nits

600~800 nits

Refresh Rate

>2,880Hz

>2,880Hz

>2,880Hz

>2,880Hz

>2,880Hz

Horizontal Viewing Angle

160°

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

140°

Expected Lifetime

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

Operating Temp/Humidity

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

Storage Temp/Humidity

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

IP Rating (Front/Rear)

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

Scan Method

1/60 Scan

1/45 1/27 Scan

1/27 Scan

1/30 Scan

1/24 Scan
