BIF Series,Shenzhen Bako Vision Technology Co., LTD

	BIF Series Indoor Fixed Display, Conventional and Cost Friendly ● Conventional Pixel Pitch ● High Cost Performance ● Front / Rear Access Options ● High Color Fidelity and High Contrast Ratio

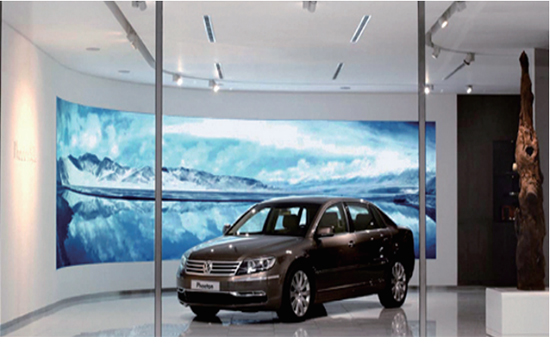

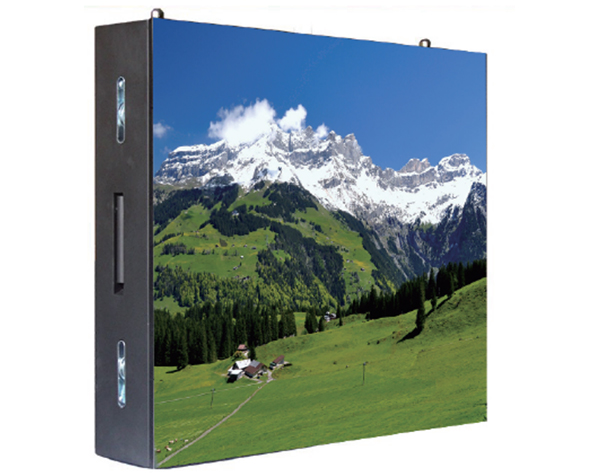

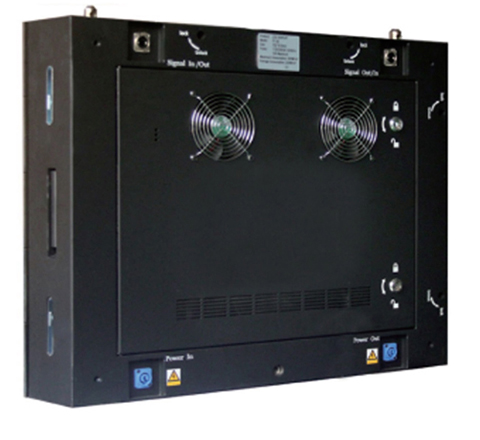

Conventional and Creative ● Conventional pitches and panel structure ● Concave, convex, cylinder shapes available ● Steel or aluminum panel, front or rear access	Unsurpassed Color Uniformity ● Unipue color calibration process ● Unipue color calibration process ● Deep black levels, contrast ratio 4000:1

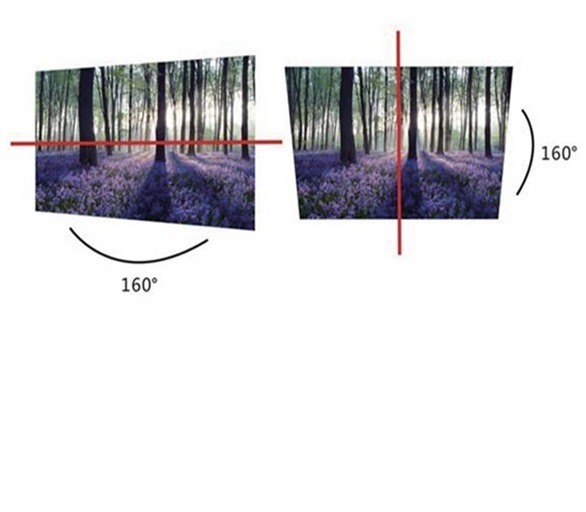

Various Mountings ● Front installation for most of wall mounting ● Simple connection, easy operation	Wide Viewing Angle ● Selected LED and mask to broaden viewing angle ● 160° horizontal and vertical wide viewing angle

	BIF-3	BIF-4	BIF-5	BIF-6
Physical Pitch	3mm	4mm	5mm	6mm
Pixel Configuration	SMD 2121	SMD 2121	SMD 2121	SMD 2121
Pixel Density	111,111 pixels/m²	62,500 pixels/m²	40,000 pixels/m²	127,777 pixels/m²
Module Dimensions (W × H) (mm)	192 × 192	256 × 128	320 × 160	192 × 192
Panel Dimensions (mm)	960 × 960	1024 × 768	1280 × 960	1152 × 960
NO.of Modules Per Panel (W × H)	5 × 5	4 × 6	4 × 6	6 × 5
Physical Resolution of Module (W × H)	64 × 64	64 × 32	64 × 32	32 × 32
Physical Resolution of Panel (W × H)	320 × 320	256 × 192	256 × 192	192 × 160
Panel Material	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum
Scan Method	1 / 32 Scan	1 / 16 Scan	1 / 16 Scan	1 / 16 Scan
Gray Scale	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4,000 : 1	4,000 : 1	4,000 : 1	4,000 : 1
Average Power Consumption	120 W / m²	120 W / m²	120 W / m²	120 W / m²
Max Power Consumption	400 W / m²	400 W / m²	400 W / m²	400 W / m²
Operating Temp/Humidity	-10℃-60℃ / 10%-60%	-10℃-60℃ / 10%-60%	-10℃-60℃ / 10%-60%	-10℃-60℃ / 10%-60%
Storage Temp/Humidity	-30℃-60℃ / 10%-60%	-30℃-60℃ / 10%-60%	-30℃-60℃ / 10%-60%	-30℃-60℃ / 10%-60%
Refresh Rate	>1,920 Hz	>1,920 Hz	>1,920 Hz	>1,920 Hz
Brightness	900 - 1,200 nits	900 - 1,200 nits	900 - 1,200 nits	900 - 1,200 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs
Servicing	Front /Rear	Front /Rear	Front /Rear	Front /Rear
IP Rating	IP 21	IP 21	IP 21	IP 21
