BOR-E-2

BOR-E-3

BOR-E-4

Physical Pitch(mm)

2.97 mm

3.91 mm

4.81 mm

Pixel Configuration

SMD 1415

SMD 1921

SMD 2525/2727

Pixel Density

112,896 pixels/m²

65,536 pixels/m²

43,264 pixels/m²

Module Dimensions (W × H) (mm)

250x250

250x250

250x250

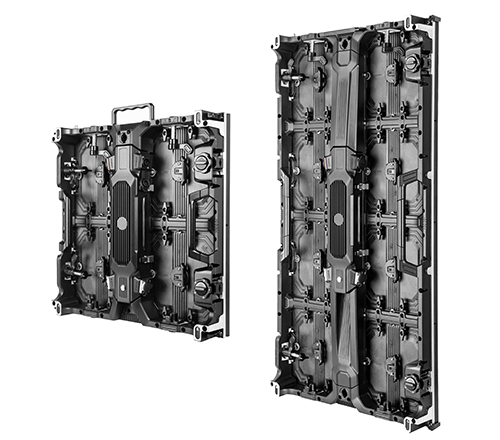

Panel Dimensions (mm)

500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

No. of Modules Per Panel (W × H)

2*2/2*4

2*2/2*4

2*2/2*4

Physical Resolution of Module (W x H)

84 × 84

64 × 64

52 × 52

Physical Resolution of Panel (W x H)

168 × 168 / 168 × 336

128 × 128 / 128 × 256

 104 × 104 / 104 × 208

Panel Material

Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Single Cabinet Weight

8 / 15 kg/panel

8 / 15 kg/panel

8 / 15 kg/panel

Gray Scale

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000:1

4,000:1

4,000:1

Average Power Consumption

400 W / ㎡

400 W / ㎡

325 W / ㎡

Max Power    Consumption

800 W / ㎡

800 W / ㎡

780 W / ㎡

Operating Temp/Humidity

-20°-60℃/10%-60%

-20°-60℃/10%-60%

-20°-60℃/10%-60%

Storage Temp/Humidity

-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

Refresh Rate

3,840 Hz

3,840 Hz

3,840 Hz

Brightness

≥4,000nits

≥4,000nits

≥4,000nits

Horizontal Viewing Angle

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

Max Stacking

20/10

20/10

20/10

Max Hanging

20/10

20/10

20/10

Servicing

Front / Rear

Front / Rear

Front / Rear

IP Rating(Front/Rear)

IP65/IP54

IP65/IP54

IP65/IP54

Scan Method

1/28 Scan

1/16 Scan

1/13 Scan
